MIDI Transport Controls

March 21, 2025 tenori-on

This page discusses the TNR’s baseline MIDI transport implementation, and some extensions.

Transport controls here cover the following messages

MIDI Start (0xFA)
MIDI Continue (0xFB)
MIDI Stop (0xFC)
MIDI Song Position Pointer (0xF2)
MIDI Timing clock (0xF8)
MIDI Block Change message

Behavior of Stock Firmware (v2.10) to incoming messages

The standard response to the MIDI transport controls is largely compliant to the MIDI specification.

Firstly, the messages that the TNR actually responds to, in slave or master mode, when the TNR is stopped or playing, is compliant. Here “Yes” means something happens, and “No” means nothing happens.

Incoming Message		Slave		Master
Name	Byte	Playing	Stopped	Playing	Stopped
Start	0xFA	No	Yes²	No	No
Continue	0xFB	No	Yes	No	No
Stop	0xFC	Yes	No	No	No
Song Position Pointer¹	0xF2	No	Yes	No	No
Timing Clock	0xF8	Yes	No	No	No

¹: Song position pointer is interpreted as the playing position within the current block, not as a block change. The response to a SPP message of F2 YY 00 is to set the playing position to YY. YY can take values of 00 to 7F, this is used as the position in the current block, wrapping around the size of the block, so for most blocks of 16 positions, only the LS nibble of the YY value is used. For ScoreX, the whole value is used.

²: The correct response to a “Start” message is to restart with song position 0, i.e. at the start of the block. However the TNR just treats Start the same as Continue

ASIDE : in Master mode, the TNR will produce Stop messages when stopped, and produce Start (FA) messages when started. This is non compliant - it should produce Continue (FB) messages when started since it doesn't restart from song position zero.

Behavior of New Firmware (releases since A025) to incoming messages

Several new features have been added to manage MIDI transport, allowing the TNR to become more non-compliant to the specification, but enabling better integration with DAWs and other MIDI transport aware hardware.

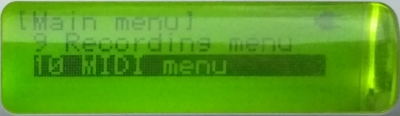

MIDI Menu

A new top-level MIDI menu has been created to manage global MIDI settings.
MIDI Transport selection

The response to any MIDI transport command can be now toggled between
- “Off” : The TNR does not respond to ANY incoming transport MIDI messages. This includes FA/FB/FC. This is included to prevent the TNR responding to transport commands intended for other sequencers on the same MIDI bus.
- “Slave” : The TNR only responds to incoming transport MIDI messages in Slave syncrhonisation mode. (This is the stock TNR behaviour)
- “Master+Slave” : The TNR responds to incoming transport MIDI messages in both Master and Slave syncrhonisation mode. This allows external stop/start control of the TNR while still using the TNR as the source of clock messages. In this mode the TNR also generates a start/stop message (i.e. applies MIDI Thru to these messages).
Selection of Song Position Pointer Message Byte

Not all sources can generate F2 song position pointer messages, so this option permits Control Change messages to be used instead, using any of CC 52-63 (usually undefined). Receipt of one of these CC messages on any midi channel is interpeted as a Song Position pointer. The encoding is the same as the LSByte of the SPP message, i.e. for CC 52 (0x34) this would now be be B0 34 0Y instead of F3 0Y 00
Selection of Block Change Message Byte

The block change message (See Block Change) can be changed from F3 to a CC message between 20-31.
Song Position Pointer and Block Change messages work while playing

Provided that SPP and BC messages are being listened to - i.e. Transport Mode is not Off and SPP and BC bytes are not OFF - then this feature means that the TNR will respond even when playing. (This was originally not allowed in the MIDI Specification because processing SPP messages could cause the synth to stutter and miss F8 clock messages, ending up out-of-time).
Selectable Compliant FA/FB behavior in MASTER mode

When in Master mode, pressing “Start” on the TNR by default issues ‘FA’ (Start). An additional menu item has been added under the MIDI menu to allow the MIDI Start byte to be “dynamic”. In this mode, if the song position is at the start, then FA (Start) is issued, otherwise FB (Continue). Normally the latter will be the case since it always restarts from where it left off, i.e with SPP not equal to zero.
Compliant behaviour in SLAVE mode

In slave mode, receiving FA Start messages will result in the song position pointer going to zero and then starting. Both these behaviors are compliant to the MIDI specification.
Song position pointer message (F2) second byte

The second byte of the SPP message will act as a “go to next loop position” for those layers whose loop speed has been set to “MIDI”. A value of 1 or 2 causes this to happen. So F2 yY 01 ignores the yY value and just causes all MIDI loop speed layers to advance, wheras F2 yY 02 sets the loop position AND causes all MIDI loop speed layers to advance.

Together, this changes the table as follows:

Incoming Message		Slave (assuming MIDI Transport is not set to "OFF")		Master (assuming MIDI Transport is set to "Master+Slave")
Name	Byte	Playing	Stopped	Playing	Stopped
Start	0xFA	No	Yes¹	No	Yes¹
Continue	0xFB	No	Yes	No	Yes
Stop	0xFC	Yes	No	Yes	No
Song Position Pointer	0xF2, or 0xBn 34-3F	Yes	Yes	Yes	Yes
Block Change Message	0xF3, or 0xBn 14-1F	Yes	Yes	Yes	Yes
Timing Clock	0xF8	Yes	No	No	No

¹: Receipt of the MIDI “Start” message also sets the Song position pointer to zero.

Transport messages output

Normally, MIDI transport messages are generated and output by the TNR when in master mode, and not transmitted at all in slave mode.

There are some circumstances in which, in slave mode, incoming MIDI transport messages are needed to be retransmitted to MIDI out. For example, if the MIDI setup is daisy chained with the TNR in the middle of a chain.

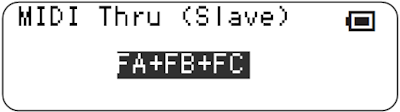

A new menu item has been added to perform MIDI Thru for selected transport messages when in slave mode. This is located under the MIDI menu and permits 4 options:

Off : the default option; nothing is retransmitted in slave mode
F8 only : MIDI Timing Clock messages are retransmitted
FA+FB+FC : Incoming Start/Continue/Stop messages are retransmitted
All : F8 (Timing Clock), FA (Start), FB (Continue) and FC (Stop) are retransmitted.

In Master mode, these messages are automatically generated by the TNR, but not passed through, unless MIDI Transport is set to [Slave+Master] as above. This results in the following behavior:

Outgoing Message		Slave		Master
Name	Byte	Generated	Retransmitted	Generated	Retransmitted
Start/Continue/Stop	0xFA/FB/FC	No	Depending on MIDI Thru (Slave) settings	Yes, on start/stop	Depending on MIDI Transport mode settings
Timing clock	0xF8	No	Depending on MIDI Thru (Slave) settings	Yes, when playing	No

Since this feature is performed in software, there may be some delay between the receipt of Timing Clock messages and them being retransmitted.

Compatibility Issues

Previous settings files (including default) will default to the following setup:

MIDI Transport selection = Off
Song Position Pointer Byte = Off
Block Change Message Byte = Off

Releases

First included in A023; start message made MIDI compliant in A028. F2 message extended slightly for A041. MIDI Thru (Slave) in A042
